Fast, clear communication is critical in today’s competitive manufacturing and business environments. Companies worldwide are increasingly relying on visual management to achieve operational excellence. Visual management makes workplaces more efficient and empowers employees to solve problems faster, reduce waste, and achieve higher quality standards.

Visual management tools provide a better understanding of roles and processes, enhancing customer satisfaction and employee engagement.

In this guide, you’ll discover:

What is visual management, and why does it matter?
Key components of effective visual management systems.
The role of visual management tools in Lean environments.
Practical examples of visual management boards.
Best practices for sustainable implementation.

🎓 Want to see real examples of visual management in action? Join our practical 5S and visual management course and get lifetime access to tools and templates.

Introduction to Visual Management

Visual management is a dynamic management method that relies on visual cues to share information and improve workplace efficiency. These visual cues can include charts, graphs, signs, and any other display that visualizes workflow, performance, and real-life problems. The main goal of visual management is to create a visual workplace where information is readily available and easily understandable.

In a visual workplace, complex data is transformed into visual formats that are immediately visible and comprehensible to everyone. This approach enhances communication and empowers employees to make informed decisions quickly. By using visual control and visual cues, organizations can streamline processes, reduce errors, and foster a culture of continuous improvement.

What Is Visual Management?

Visual management is communicating key information quickly and effectively through visual signals rather than written instructions or verbal communication. A visual management tool can be instrumental in this process by providing explicit visual representations that enhance organization and productivity.

In simple terms:

Visual management makes the workplace self-explanatory.

It uses visual controls such as signs, labels, colors, charts, and boards to:

Highlight standards.
Identify deviations from standards.
Make processes visible and understandable at a glance.

In Lean philosophy, visual controls lean thinking encourages fast decision-making and fosters a culture of transparency.

Selecting tailored visual management ideas that align with specific company objectives can enhance overall process efficiency by minimizing ambiguity and streamlining workflows.

The Role of Visual Management in Lean Manufacturing

Visual management is a fundamental principle of Lean manufacturing systems. It supports two key Lean goals:

Eliminate waste (especially time and motion waste).
Enable immediate recognition of problems.

Visual management supports lean manufacturing principles by identifying and addressing issues within processes to enhance productivity and quality.

By using visual management systems, organizations can make the seven wastes of Lean (motion, waiting, defects, overproduction, transportation, inventory, overprocessing) instantly visible and correctable within their manufacturing processes.

In a lean visual factory, anyone should be able to walk onto the floor and immediately understand:

What is happening.
What should be happening.
Whether standards are being met.

🧠 Learn how to implement Lean visual systems by enrolling in our 5S and visual management training. Start here.

Visual Management Tools: Key Elements You Should Use

Practical visual management tools include:

Color-coded floor markings for pathways, storage areas, and safety zones. The use of color coding simplifies information dissemination and reduces confusion.
Shadow boards for tool organization.
Visual production boards showing work-in-progress, targets, and performance metrics.
Andon systems for signaling production line problems.
Kanban boards to control inventory and workflow.
5S audit boards to maintain workplace organization standards.

Each tool serves the purpose of instantly communicating the current state and prompting action where necessary. Visual management boards are crucial in problem-solving and performance tracking, enhancing communication and providing immediate feedback to team members.

Visual Management Best Practices

Here are visual management best practices every organization should follow:

Keep it simple: Visuals should be easily understandable without explanation.
Use standard colors and symbols: Consistency reduces confusion.
Place information where it’s needed: Point-of-use communication is key.
Focus on critical information: Highlight what matters most.
Update visuals regularly: Keep displays relevant and accurate.
Involve employees: Workers should help design and maintain visual systems.
Ensure proper training: Proper training is crucial for successfully implementing visual management tools. Employees must understand how to use these tools effectively to achieve specific goals and foster effective communication.

Following these practices ensures that manufacturing visual management stays functional and effective.

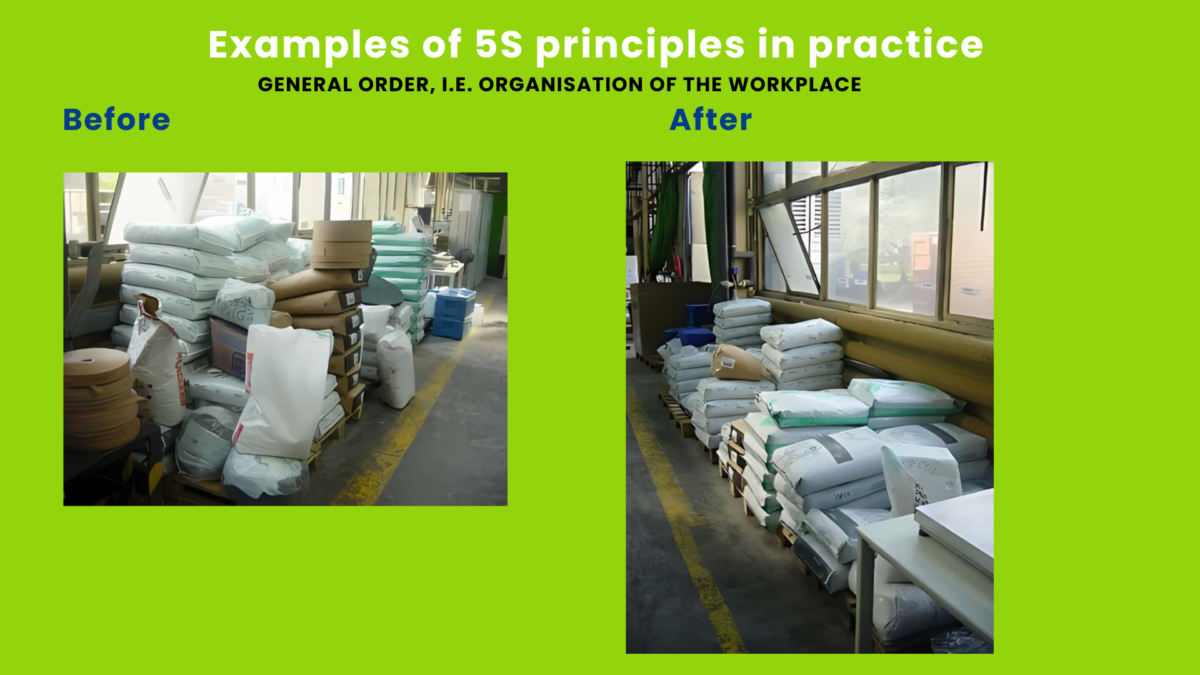

Before and after photos of warehouse storage area showing visual management through 5S implementation.

Examples of Visual Management Boards

Let’s look at practical examples of visual management boards:

Visual management boards are essential tools in lean manufacturing and other process-driven environments. They help teams visualize workflows, track progress, and identify bottlenecks. For instance, Kanban boards are widely used to manage software development and manufacturing tasks. They provide a clear visual representation of work items and their status, making it easier to manage workloads and deadlines.

Another example is the use of huddle boards in healthcare settings. These boards facilitate daily team meetings, allowing staff to discuss patient care, share important updates, and coordinate activities. Huddle boards often include sections for tracking patient status, upcoming procedures, and staff assignments.

In addition to these, information displays and key metrics play a crucial role in visual management boards. Information displays, such as daily management boards, are straightforward and easily comprehensible communication tools between shifts and departments. Key metrics shown on digital data displays provide real-time performance information and highlight potential issues in production lines, enabling quick efficiency assessment and identification of abnormalities.

1. Production Status Boards

Display targets vs. actual production numbers.
Use green/red indicators to show performance.

2. Maintenance Boards

Track machine uptime and preventive maintenance schedules.
Highlight overdue tasks with visual alerts.

3. Safety Boards

Show days since last incident.
Visual reminders for PPE and safety rules.

4. 5S Audit Boards

Post latest 5S scores.
Highlight action plans for improvement.

Such boards are a standard part of shop floor visual management and help create accountability and drive continuous improvement.

📋 Need practical templates for visual production boards? Access our ready-to-use resources inside the 5S course. Learn more here.

What a Visual Management Factory Looks Like

In a well-implemented visual management factory:

Flow is obvious: Material, people, and information flow are visible.
Problems are visible: Anything out of standard sticks out immediately.
Employee actions are guided: Workers know what to do without asking.

Visual management tools are utilized directly on the factory floor to identify hazards, track production metrics, and facilitate problem-solving, creating a safer and more organized working environment.

In manufacturing environments, visual management tools, such as Andon systems and mobile integrations, play a crucial role in real-time problem signaling and performance monitoring to improve responsiveness and reduce errors. The workplace speaks for itself—through visual controls, not through supervisors chasing people down.

Shop Floor Visual Management: A Key to Lean Success

Shop floor visual management focuses on:

Operator status boards.
Takt time displays.
First-pass yield charts.
Safety reminders.
Machine maintenance indicators.

Visual management tools like Kanban boards help identify bottlenecks within workflows by providing clear and visual representations of processes, enabling teams to pinpoint delays or inefficiencies quickly.

These tools ensure that operators and supervisors can react quickly, adjust actions, and prevent small problems from escalating. Visual management systems, such as traffic lights, guide behavior and prevent issues on the shop floor by indicating when to proceed, slow down, or stop.

📈 Want to build an effective visual management system for your shop floor? Our training course guides you step-by-step. Get instant access here.

Problem Solving with Visual Management

Visual management plays a crucial role in problem-solving by making issues immediately visible and easier to address. Visual tools such as production status boards, andon systems, and color-coded indicators, help identify bottlenecks and deviations from standards.

For instance, a production status board displaying real-time performance metrics can highlight areas where production targets are unmet. This immediate visibility allows teams to investigate and resolve issues before they escalate. Similarly, andon systems alert operators to problems on the production line, enabling quick intervention and minimizing disruptions.

Visual management practices also support continuous improvement by providing a clear view of operational data. Teams can analyze visual indicators to identify patterns and root causes of problems, leading to more effective solutions. By integrating visual tools into the problem-solving process, organizations can enhance their ability to respond to challenges and drive significant improvements in overall productivity.

By following this structured approach, the new sections will seamlessly integrate into the existing article, providing a comprehensive and cohesive guide to visual management in lean manufacturing.

How to Start Implementing Visual Management Systems

Assess current visibility: What information is missing or unclear?
Prioritize key processes: Focus on high-impact areas first.
Select appropriate tools: Choose visual management tools that match your environment.
Design simple visuals: Easy to see, easy to understand.
Train your teams: Explain visual management and why it matters. The management team should work closely with supervisors to identify areas for improvement and facilitate meetings with workers to ensure understanding and gather input for effective deployment.
Audit and improve: Continually refine your visual systems.

Benefits of Visual Management

Organizations that implement strong visual management systems experience:

Faster communication and decision-making.
Increased accountability among employees.
Improved safety and compliance.
Higher quality outputs through earlier detection of problems.
Stronger Lean culture through empowerment and visibility.

Visual management enhances team performance by improving accountability and efficiency and contributes to waste reduction by identifying and minimizing unnecessary processes.

Visual management supports everything Lean stands for: flow, flexibility, waste elimination, and customer focus.

Frequently Asked Questions

What is visual management?

It uses visual signals to communicate information quickly, making processes and standards immediately visible.

Principles of Visual Management

Visual management is based on several key principles that ensure its effectiveness in improving operational performance. One of the core principles is the use of visual aids. These aids, such as color-coded charts, floor markings, and visual management boards, help make critical information immediately apparent to all employees.

Standardization is another crucial principle. By using consistent visual indicators and symbols, organizations can reduce confusion and ensure everyone understands the visual cues similarly. This standardization supports process stability and helps maintain high-quality standards.

Continuous improvement is at the heart of visual management. By regularly updating and refining visual tools, organizations can adapt to changing conditions and drive ongoing process improvement. This principle ensures that visual management systems remain relevant and practical over time.

Types of Visual Management

Visual management encompasses a variety of tools and techniques designed to enhance communication and efficiency in the workplace. Here are some common types of visual management tools:

Visual Management Boards: These boards display key performance indicators (KPIs), production metrics, and other critical information. They help teams track progress and identify areas needing attention.
Kanban Boards: Used to manage workflow and inventory, kanban boards provide real-time feedback on the status of tasks and materials. They are essential for balancing demand and supply in production processes.
Andon Systems: These visual tools signal production line problems using lights or alarms. They enable quick response to issues, minimize downtime, and maintain process stability.
Shadow Boards: These boards outline the shapes of tools, ensuring each tool has a designated place. This visual tool helps maintain organization and reduces time spent searching for tools.
Color-Coded Floor Markings: These markings designate specific areas for storage, pathways, and safety zones. They enhance workplace organization and ensure compliance with safety standards.

Organizations can create a more efficient and responsive work environment by implementing these visual management tools.

What are examples of visual management?

Examples include kanban boards, production status boards, shadow toolboards, and safety tracking charts.

How does visual management support Lean manufacturing?

It eliminates ambiguity, reduces waste, improves flow, and enables real-time problem-solving.

Final Thoughts: Visual Management Makes Excellence Visible

If Lean is about delivering more value with less waste, then visual management is how we make that value flow obvious to everyone. Labor is one of the most critical components of an operation, and by implementing effective strategies, such as a Just In Time workforce, organizations can enhance their operational speed and agility.

Whether through visual controls, production boards, or shop floor visual management, great visual systems help teams stay aligned, spot issues early, and solve problems proactively. These powerful tools enhance communication and efficiency in operational processes by using markings, visual management boards, and analytical diagrams to convey information and improve decision-making in various environments.

Start simple, start small—but start today.

🎓 Ready to Master Visual Management in Lean Organizations?

If you want to create an efficient, self-explaining workplace where problems can’t hide, I warmly invite you to enroll in my online course: 👉 The Fundamentals of 5S – Boosting Efficiency and Safety Throughout the Organization

This course provides a better understanding of visual management tools and their benefits, enhancing customer satisfaction and employee engagement.

This course is based on my 25+ years of practical experience in Lean Manufacturing and includes:

🎥 VoD format – learn anywhere, anytime.
♾️ Lifetime access – no expiration.
🧰 Ready-to-use templates – including visual management examples.
🧠 Self-paced learning – perfect for busy professionals and teams.

Proper training is crucial for successfully implementing visual management tools. Our course ensures that employees understand how to use these tools effectively, preparing your workforce to embrace changes in processes and systems.

👉 You can even preview one of the lessons for free and see how our practical approach will help you build a world-class visual workplace!

Transform your workplace into a Lean visual factory—starting today.

Visual Management: 5 Powerful Tools to Boost Productivity

Visual Management: The Power of Visual Control in Lean Manufacturing
